Question 21 UFIV01 - Chief Engineer - UFIV

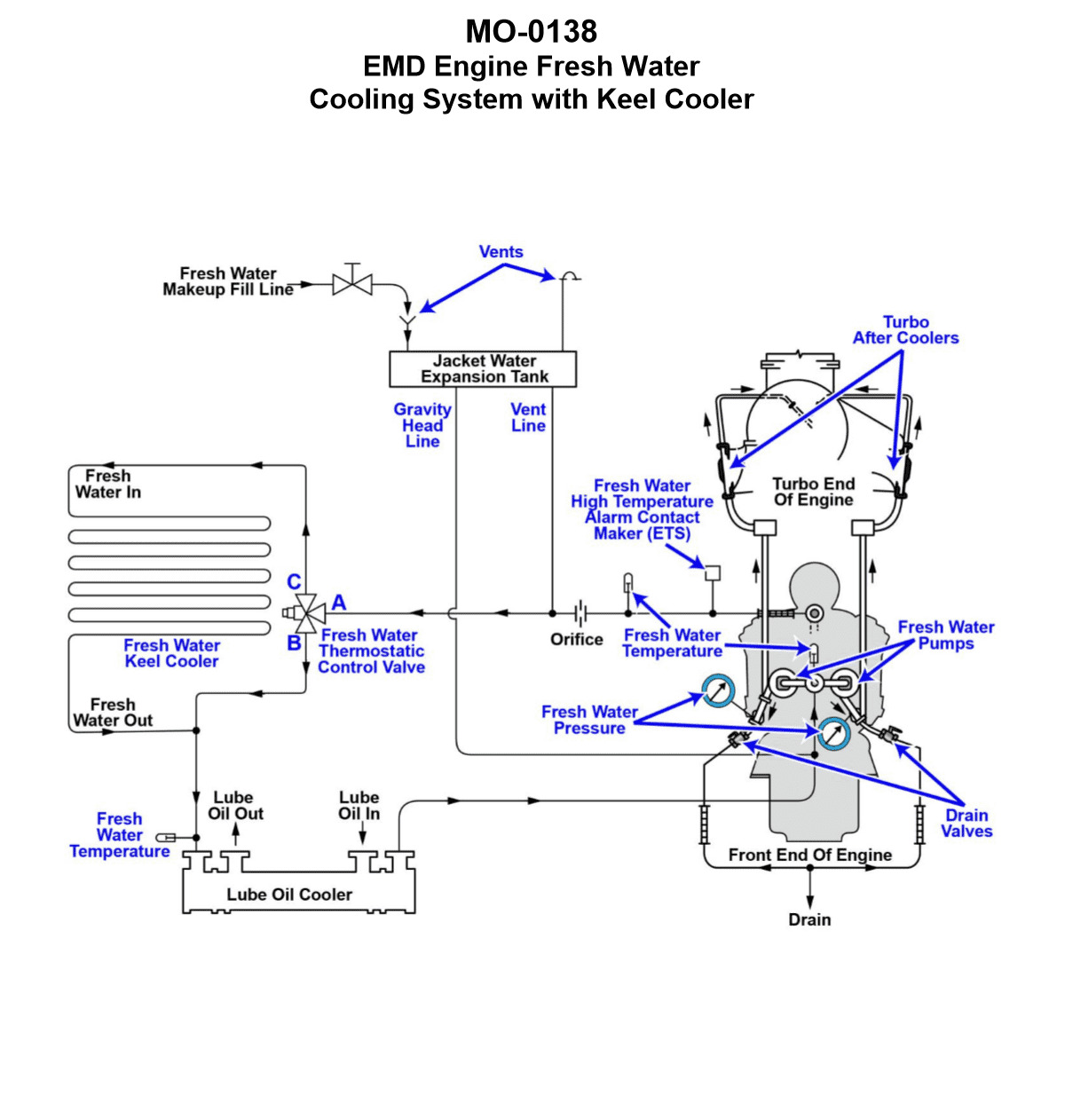

The Correct Answer is A. **Why option A is correct:** A keel cooler is a type of heat exchanger used primarily on vessels. It is designed to dissipate heat from the engine's closed-loop freshwater cooling system directly into the surrounding seawater. To function effectively, the keel cooler must be in constant, direct contact with the maximum volume of cooling medium (the seawater). Therefore, it is always mounted externally, directly onto the hull structure, and specifically **below the water line** where it is fully submerged. **Why other options are incorrect:** * **B) The keel cooler is mounted on the inside of the hull above the water line:** If mounted inside the hull, it would be an internal heat exchanger (like a plate heat exchanger) cooled by pumped seawater, not a keel cooler. If mounted above the water line, it would be exposed to air, not water, making it useless for transferring heat into the sea. * **C) The keel cooler is mounted on the inside of the hull below the water line:** Although below the water line, mounting it inside the hull would require the heat to transfer through the hull material (which is a poor conductor of heat compared to direct water contact) and would classify it as a box cooler or similar internal heat exchanger, not a traditional external keel cooler. * **D) The keel cooler is mounted on the outside of the hull above the water line:** Mounting it outside is correct, but mounting it above the water line means it would be cooled primarily by air (and occasional spray), severely limiting its cooling capacity and rendering it ineffective for marine engine cooling.
