Question 27 3AE01 - Third Assistant Engineer

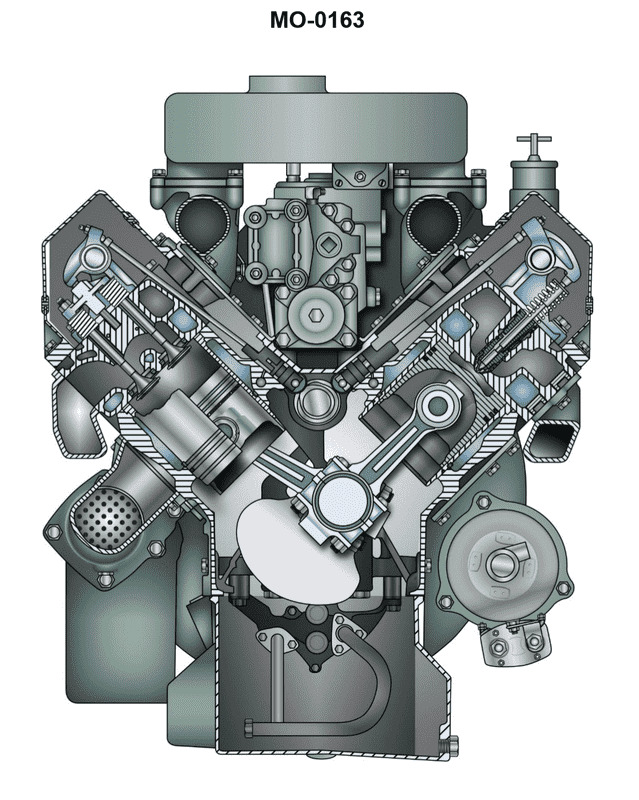

The Correct Answer is C ### Why Option C is Correct Option C states that **The valve guides and the valve seats are both replaceable inserts.** In modern medium-speed and high-speed auxiliary diesel engines (like those typically represented in illustrations such as MO-0163, which often depict standard four-stroke auxiliary engine cylinder heads), the cylinder head design prioritizes ease of maintenance, repair, and thermal management. 1. **Valve Guides:** The valve guide bears the side load imposed by the valve train and ensures the valve remains properly aligned on the seat. Because the guide wears out over time due to friction and heat, it is almost universally manufactured as a separate, press-fit, or shrunk-in **replaceable insert** (sleeve) made of suitable wear-resistant material (e.g., bronze or cast iron). 2. **Valve Seats:** The valve seat is the surface against which the valve head seals. This area is exposed to extremely high temperatures and mechanical forces upon closure. To manage wear, heat, and prevent damage to the main cylinder head casting, the sealing surface is made of highly durable, specialized alloy steel, formed as a separate **replaceable insert** (often called a valve seat ring or insert) which is secured (typically shrunk-in or pressed) into the cylinder head. Therefore, for routine overhaul and maintenance, both components are designed to be removed and replaced without having to replace the entire cylinder head casting. *** ### Why Other Options Are Incorrect **A) The valve guides are replaceable inserts, and the valve seats are integral (non-replaceable).** * This is incorrect because the valve seat area experiences immense thermal and mechanical stress and is almost always a replaceable insert to protect the cylinder head material. An integral seat would require welding/machining or scrapping the cylinder head once the seat wears beyond limits. **B) The valve guides are integral (non-replaceable), and the valve seats are replaceable inserts.** * This is incorrect because, like the seats, the guides are wear items subject to friction and heat. Making the guides integral would necessitate complex and costly machining operations (reaming and oversizing) or replacement of the entire cylinder head when wear limits are reached, which is contrary to standard modern engine maintenance practice. **D) The valve guides and the valve seats are both integral (non-replaceable).** * This is incorrect. While this practice was sometimes used in older, simpler, or lower-output engines, it is highly impractical for modern, highly stressed marine auxiliary engines. Both components are critical wear items, and making them integral would lead to very high maintenance costs and extended downtime for repairs.
