Question 1 MODE01 - Chief MODU Engineer

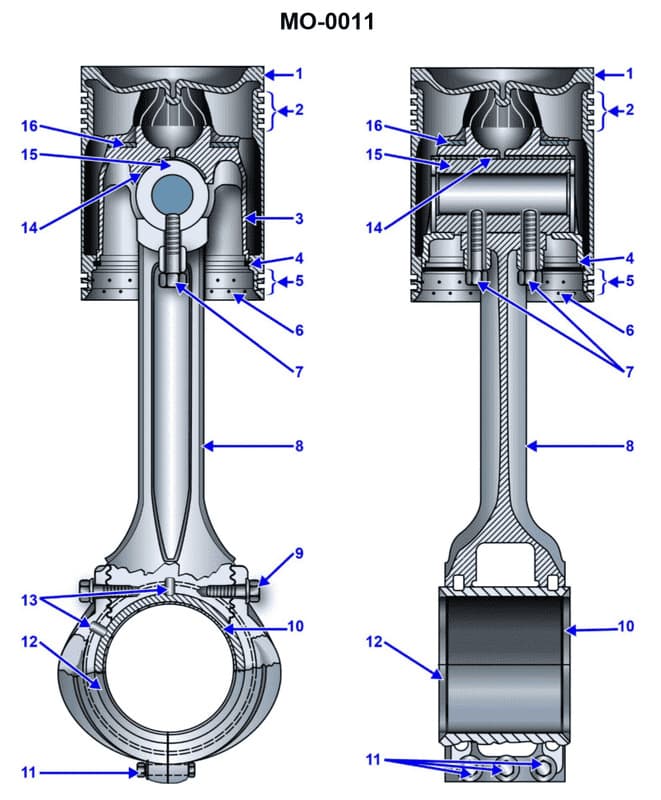

The Correct Answer is D **Explanation of why option D ("All of the above.") is correct:** Option D is correct because the illustration MO-0011, which depicts a highly specific type of connecting rod and piston assembly (often found in specialized or heavy-duty diesel applications), features all three characteristics listed in A, B, and C. Since statements A, B, and C are all accurate descriptions of the assembly shown, "All of the above" is the appropriate choice. --- **Explanation of the individual statements (A, B, and C) that make D correct:** * **A) The piston has a heat dam:** This statement is correct. A heat dam is a design feature (a groove or barrier) machined into the piston crown designed to slow the transfer of heat from the combustion face down to the top piston ring, thus protecting the rings and extending their life. * **B) The piston pin is bolted to the connecting rod:** This statement is correct. While many piston pins are either press-fit or full-floating (retained by circlips), in certain heavy-duty assemblies, the pin is secured rigidly to the connecting rod using bolts or clamping mechanisms to prevent movement, ensuring stability under high loads. * **C) The piston is free to rotate on the carrier thrust washer:** This statement is correct. Piston rotation is sometimes designed into large or heavy-duty engines to promote uniform wear around the circumference of the piston skirt and the cylinder liner, increasing the longevity of the components. Thrust washers or guides are used to manage the axial movement and facilitate this rotation.
