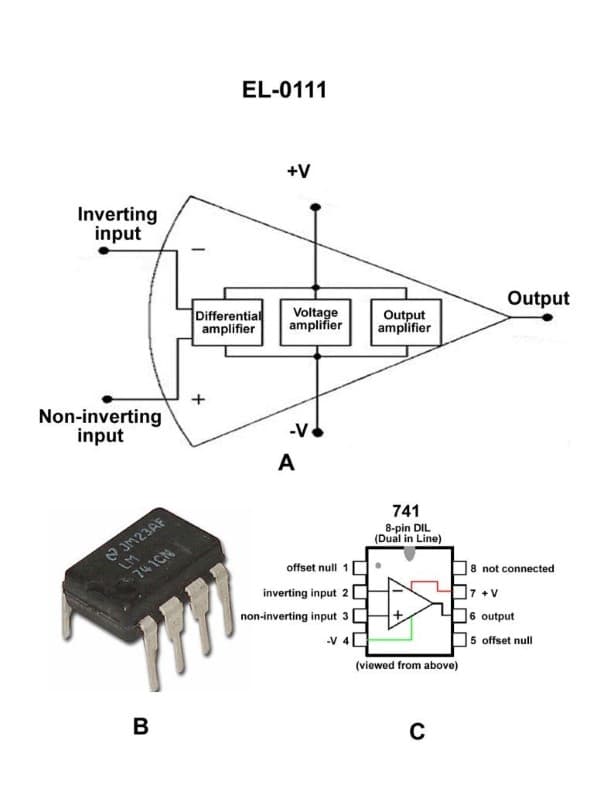

Question 45 CEL02 - Chief Engineer - Limited (Alt)

The Correct Answer is C **Explanation for C (Correct):** The 741 operational amplifier (op-amp) is a standard integrated circuit. Its primary function is to amplify the *difference* between the two input terminals. These input terminals are the Inverting Input (typically pin 2) and the Non-Inverting Input (typically pin 3). The first stage of the 741 architecture, known as the differential amplifier (or differential input stage), is specifically designed to receive signals from pins 2 and 3, reject common-mode noise, and amplify the net voltage difference ($V_{diff} = V_{pin 3} - V_{pin 2}$). **Explanation for A (Incorrect):** Pins 1 and 5 on the 741 are typically used for "Offset Null" adjustments (trimmers) to eliminate small DC offsets that might exist in the output when the inputs are equal. They are not the main signal input pins used by the differential amplifier to determine the output signal. **Explanation for B (Incorrect):** This option incorrectly mixes an input pin (pin 2, Inverting Input) with an offset null pin (pin 5). The differential amplifier stage does not operate based on the difference between these two specific pins. **Explanation for D (Incorrect):** This option incorrectly mixes an input pin (pin 3, Non-Inverting Input) with an offset null pin (pin 5). The differential amplifier stage does not operate based on the difference between these two specific pins.
